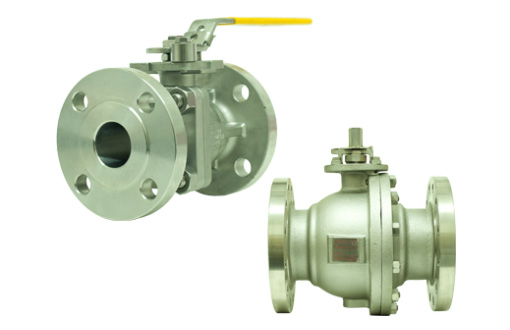

Full-Flo Series and Uni-Flo Series - Flanged End Floating Ball Valves
Full-Flo Series and Uni-Flo Series - Flanged End Floating Ball Valves
Flanged valve top works design is completely separate from the valve packing gland preventing absorption of force from the quarter turn stop impact and misapplied maintenance and greatly reduced stem packing adjustments.
The valve top flange is designed to facilitate ease of automation by including ISO 5211 bolting patterns.
Other Details :
- Availability : Available
- MANUFACTURERS : Flow Tite
- Description
- Tech Bulletin
- Reviews
Description
Flanged valve top works design is completely separate from the valve packing gland preventing absorption of force from the quarter turn stop impact and misapplied maintenance and greatly reduced stem packing adjustments.
The valve top flange is designed to facilitate ease of automation by including ISO 5211 bolting patterns.
The valve top flange can be adapted with a secondary containment bonnet for critical requirements, fugitive emissions or cryogenic applications.
The floating ball design offers a positive leak proof seal and is pressure activated provodong leak proof performance.
Flow capacity of the full port series is the same as similar sized piece of pipe, as a result it suffers no appreciable pressure drop or head loss across the valve as may be the case with other valve types - a constriciton free flow path.
Graphite stem packing meets the highest fire standards under extreme conditions.
Optional design features include a Cryogenic Extension, Control Valve, and Fusiblke Link.
F150 Class 150
F300 Class 300
SF150 Class 150
SF300 Class 300
