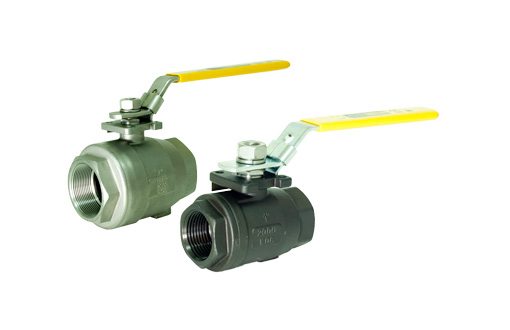

T23 - 2 PC Full Bore Ball Valve
T23 - 2 PC Full Bore Ball Valve
Fusion Series
2 PC Design, Available in Stainless Steel (316SS) and Carbon Steel (WCB.) Factory tested in open and closed position for bubble tight integrity seat: air under water at 100 PSI (MSS-SP-72.)
Other Details :
- Availability : Available
- MANUFACTURERS : Flow Tite
- Description
- Tech Bulletin
- Reviews
Description
Fusion Series
2 PC Design, Available in Stainless Steel (316SS) and Carbon Steel (WCB.) Factory tested in open and closed position for bubble tight integrity seat: air under water at 100 PSI (MSS-SP-72.)
- Designed to API 607 4th edition
- Shell Wall ANSI-B16.34 Maximum Pressures 3000 PSI CWP / 150 PSI SWP
- Adjustable live-loaded graphite stem packing prevents stem leakage
- Seats are 25% carbon-PTFE
- Replaceable seats and seals
- Threaded Ends ANSI B1-20-1 NPT
- Anti-Static Ground
- Locking handle and Oval handle
- Foundry heat numbers for all valves
- Metal nameplates identifies all soft parts
Pressure Ratings
- ¼" ~ 2" - 2000 WOG
- 2 ½" ~ 4" - 1500 WOG
Sizes: ¼" - 4"
