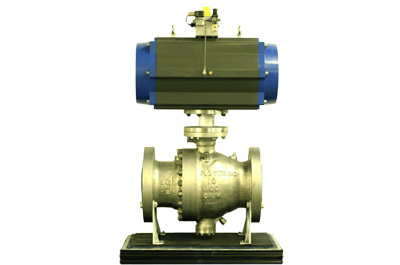

TRUNNION MOUNTED BALL VALVES
TRUNNION MOUNTED BALL VALVES
TM Series valves are available for piggable service - special pig launcher designs!
1, 2, or 3 piece construction avaible in the following body materials: WCB, A105, LCB, LF2, CF3, CF8M
Other Details :
- Availability : Available
- MANUFACTURERS : Flow Tite
- Description
- Tech Bulletin
- Reviews
Description
TM Series valves are available for piggable service - special pig launcher designs!
1, 2, or 3 piece construction avaible in the following body materials: WCB, A105, LCB, LF2, CF3, CF8M
Bi-directional seating
Double Block and Bleed
Automatic Cavity Relief
ISO Mounting Pad
Blow-out proof stem
Anti-static ground
Fire safe certified
2 PC made from sand cast
2 PC ANSI #150 #300 #600 #900 classes
3 PC made from forged metal design to eliminate possible defects and assures uniform structure at full rated working pressures
2 PC ANSI #1500 #2500 classes; smaller ANSI classes upon request
Flanged or Butt Weld
ANSI Class 150 thru 2500
