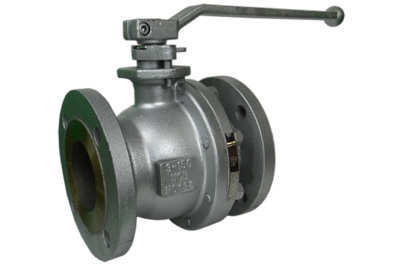

HF-Floating Ball Valve Design
HF-Floating Ball Valve Design
Models:
HF 150 - Class 150
HF 300 - Class 300
Sizes 2" - 8"
Other Details :
- Availability : Available
- MANUFACTURERS : Flow Tite
- Description
- Tech Bulletin
- Reviews
Description
Models:
HF 150 - Class 150
HF 300 - Class 300
Sizes 2" - 8"
Full Port Design:
2PC Split Body Design
Standard Materials
Carbon Body with 304SSTrim
Also Available in LCB & LCC
Design Features:
- Quality Sand Castings
- Floating Ball Design
- Locking Device
- Blow-out Proof Stem
- Anti Static Ground
- Graphite Stem & Body Seal
- Pressure Testing API 598, BS 6755 PT-1
- Actuator Mounting Pad
Standards of Compliance:
- ANSI Class 150
- Flanges B 16.5
- Face to Face B 16.10
- Shell / Wall B 16.34
- Fire Safe API607-4
- Complies NACE MRO175
- Complies API-6D / ISO-9001
- All valves 100% hydrostatically pressure tested:
- ANSI - 150 Shell 425 PSI
